4.10.2. Detect high and low points

4.10.2. Detect high and low points

Determines the highest and lowest coordinates – either for the entire current drawing or for a single line number. The two points are highlighted in red in the 3D model and also displayed as text information in the dialog.

Ribbon button: Design > Detect High/Low Point
Command: PiCriHighLowPoint

Procedure:

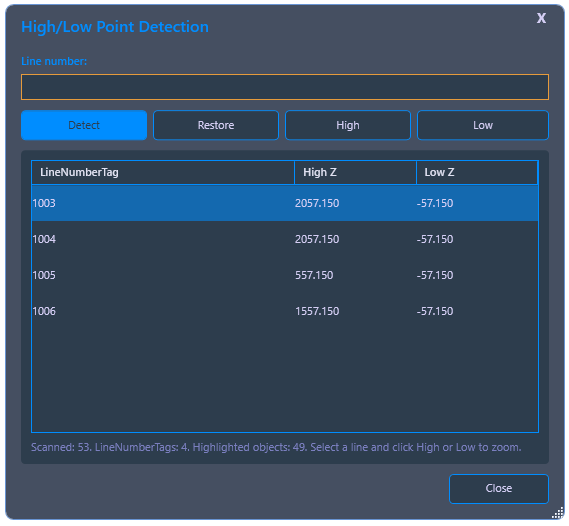

• Start the command. Click Detect. PiCri determines the highest and lowest coordinates of all line numbers, highlights the associated locations in red, and displays the values as text.


• Use High and Low to zoom directly to the respective point in the model.
• Use Reset to remove the red highlight.
