Steel Structure Automation for Plant 3D™

SuCri® is a professional plugin for AutoCAD Plant 3D™ that enables automated placement of primary and secondary steel structures. It includes manufacturer catalogs from Sikla, Hilti, Bernecker, and MPSS and automatically generates fabrication drawings.

SuCri® supports AutoCAD Plant 3D™ versions 2023 through 2027.

For SuCri®, four manufacturer extensions are available: Sikla, Hilti, Bernecker and MPSS. Each manufacturer is licensed separately. Standard Plant 3D™ components are always included in Module 1. Custom extensions for additional manufacturers on request.

Yes, IntegaDesign offers a free 15-day trial license. You can test SuCri® in your real projects without obligation.

SuCri® offers flexible license models: individual modules from 500€/year, Bundle from 1,290€/year, Suite from 1,690€/year, Enterprise from 1,990€/year.

Our customers report an average of 65% time savings in steel structure planning.

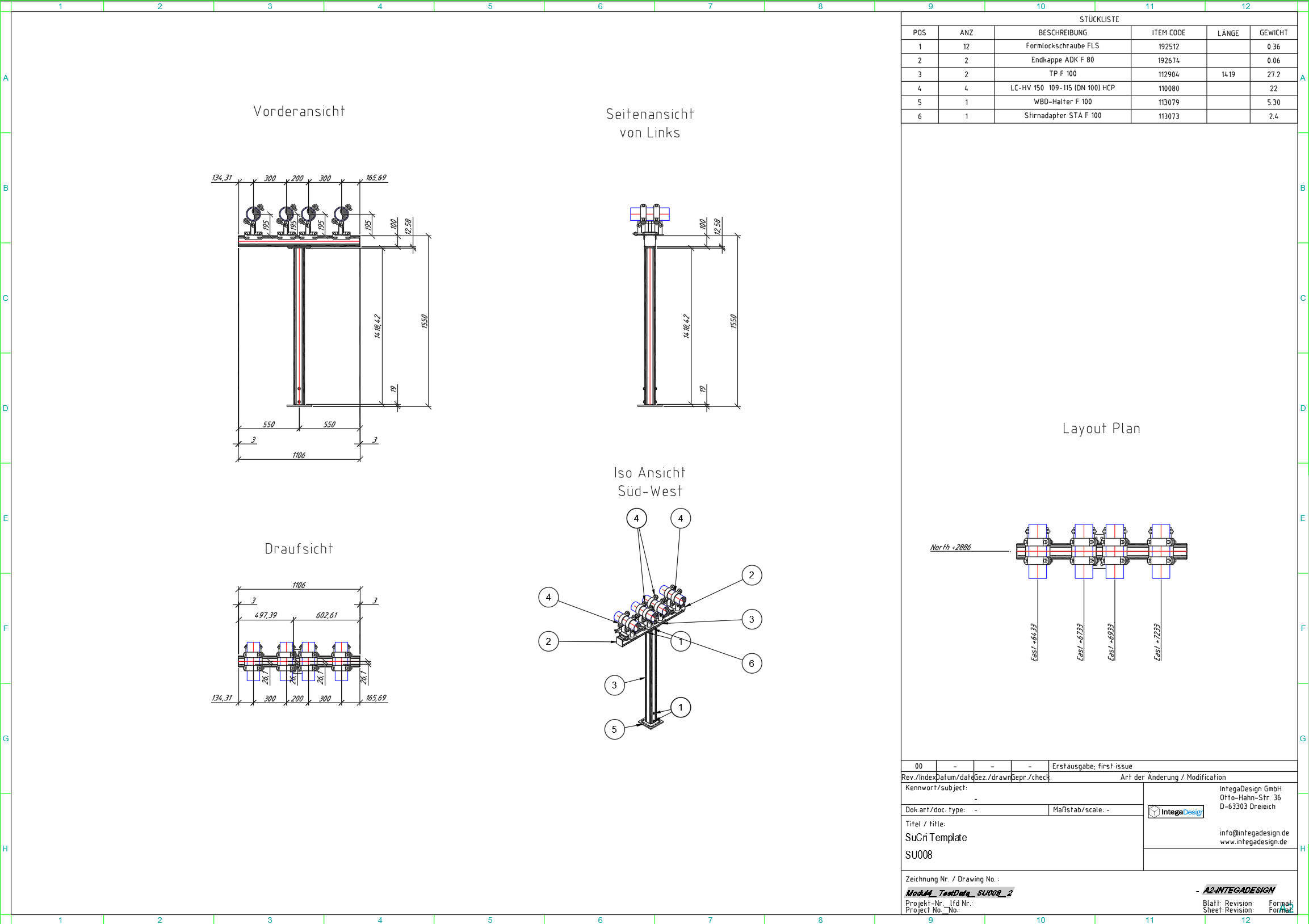

Yes, with Module 4, SuCri® creates secondary steel structure drawings fully automatically.

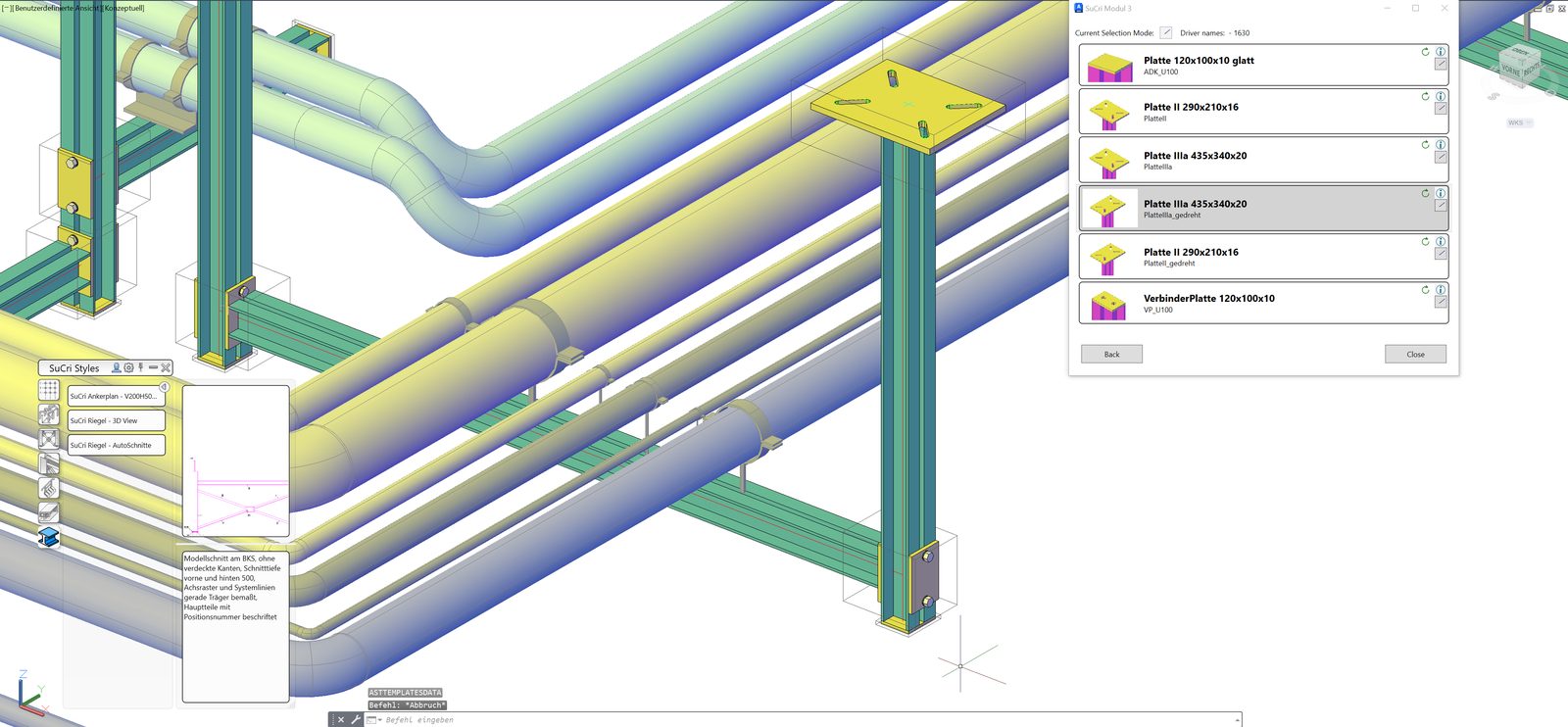

Yes, Module 3 enables direct export from Plant 3D™ to Advance Steel™.

Plant designers, CAD administrators and engineering offices that model pipe supports, primary and secondary steel structures in AutoCAD Plant 3D™, typically in pharma, chemical, process and water/wastewater industries.

Pharmaceuticals, chemicals, petrochemicals, process industry, water and wastewater, plus any other plant engineering domain where Plant 3D™ is the CAD platform.

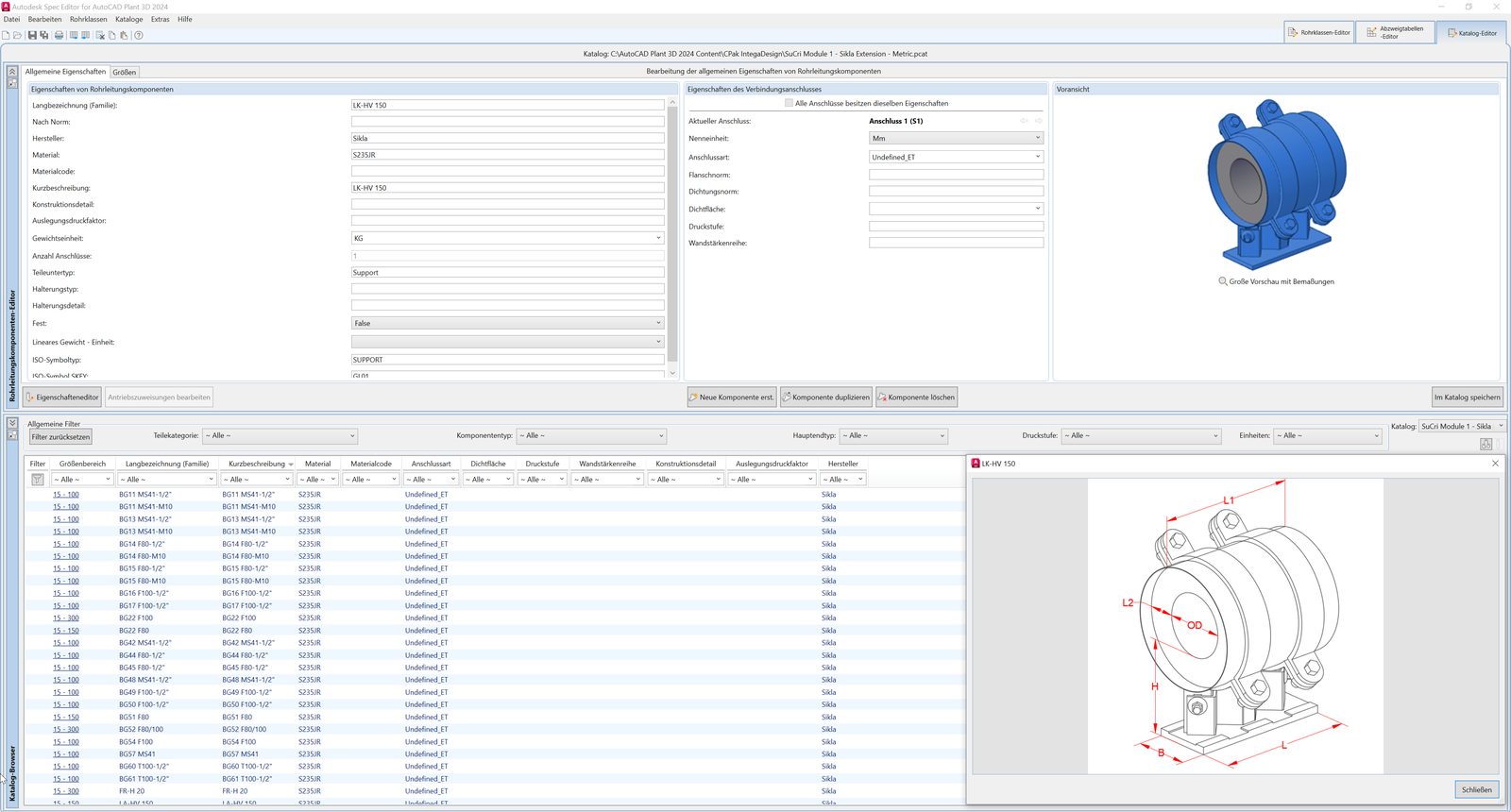

Module 1 (component catalog), Module 2 (extended pipe enclosing functions), Module 3 (Plant 3D™ → Advance Steel™ handover), Module 4 (automatic drawing generation). Modules are available individually or as Bundle/Suite/Enterprise packages.

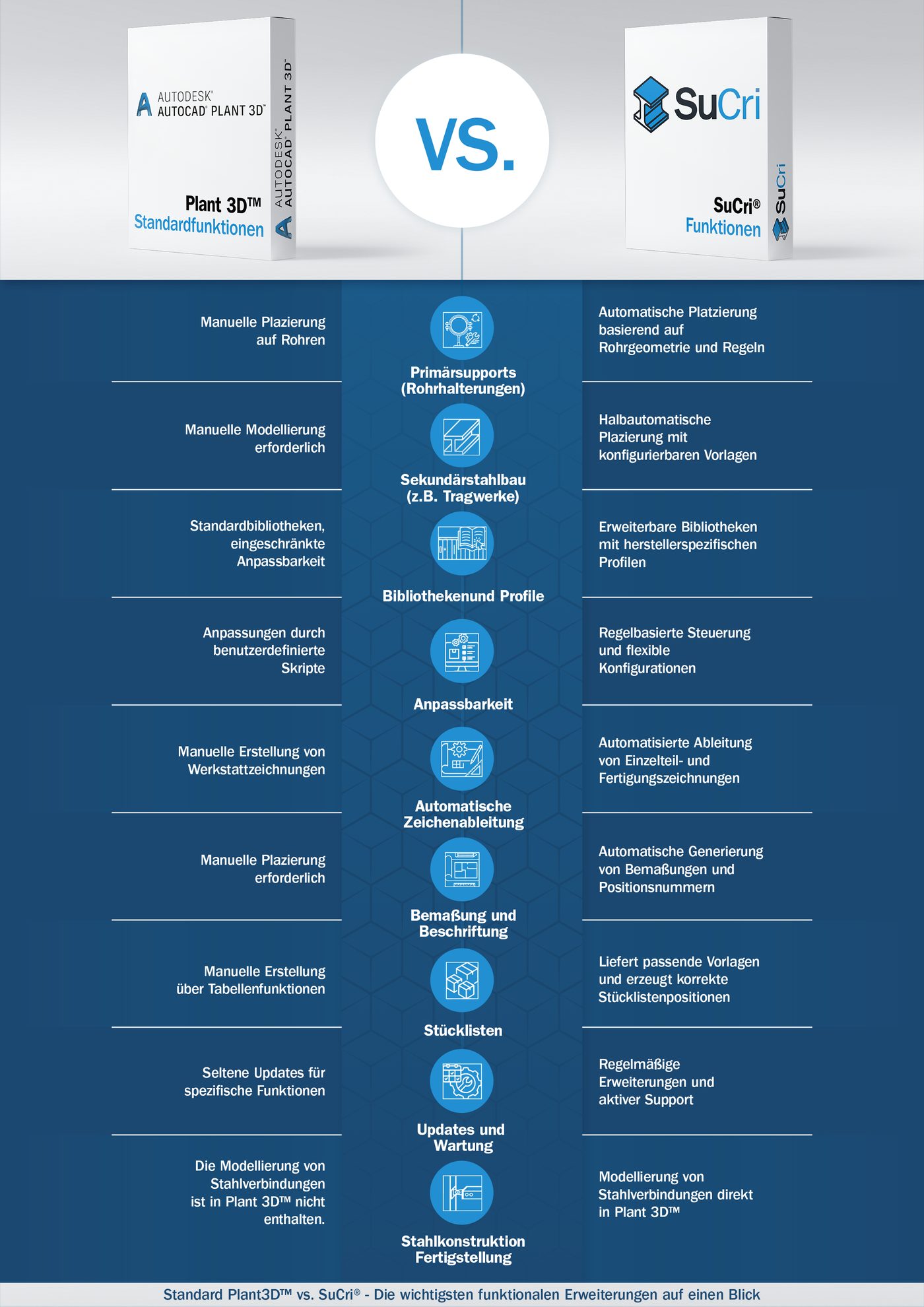

Plant 3D™ liefert standardmäßig parametrische Halterungen aus dem mitgelieferten Bauteilkatalog. Wer mehr Vielfalt braucht, baut blockbasierte Geometrien als Eigenkatalog selbst auf. Das ist schnell umgesetzt, geht aber zu Lasten der Performance und liefert nur statische statt parametrischer Halterungen. SuCri® bietet vollständig parametrische Bauteile direkt aus den Originalkatalogen von Sikla, Hilti, Bernecker und MPSS, automatisch auf der Trasse positioniert und bei Routen- oder Rohrgrößen-Änderungen mitgeführt.

Floating licenses are distributed across the company network and can be assigned flexibly. A seat is only blocked while SuCri® is actively open. Optimal utilization for multiple users with intermittent usage.

Experienced Plant 3D™ users are productive within 1-2 hours. For teams we recommend a one-day training. IntegaDesign offers online and on-site trainings.

Yes, IntegaDesign offers custom extensions: in-house component catalogs, company-specific standard parts or additional manufacturers can be parametrically integrated into SuCri® on request.

Beim Export werden die Geometrien der Primärsupports samt Klemmsystemen aus SuCri® direkt nach Advance Steel™ übergeben. Auf Wunsch lassen sich auch die Sekundärstahlbauprofile mitnehmen. Über die Einstellungen können bis zu zehn Metadaten-Properties frei auf Advance-Steel-Felder gemappt werden, etwa Beschreibungen oder Tags.

Typical payback is 3-6 months depending on project volume and user count. An interactive ROI calculator on the SuCri® page shows your individual break-even threshold.

During the license period: e-mail support with response within one business day, version updates and patches included. Premium support (phone, SLA, dedicated) optionally bookable.
